Structural Steel Support for Commercial, Multi-Family & Residential Elevator Shafts

Elevator Hoistway Structural Steel Systems

Bare Steel Inc. fabricates and installs the structural steel framework that supports modern elevator systems. Working alongside elevator manufacturers, general contractors, and structural engineers, we provide precision-built steel components that create a safe, code-compliant hoist way ready for elevator installation.

Our scope includes custom fabricated hoist beams, structural columns, guide rail support systems, embedded plates, divider beams, equipment support steel, pit steel, and other miscellaneous structural steel required throughout the elevator shaft.

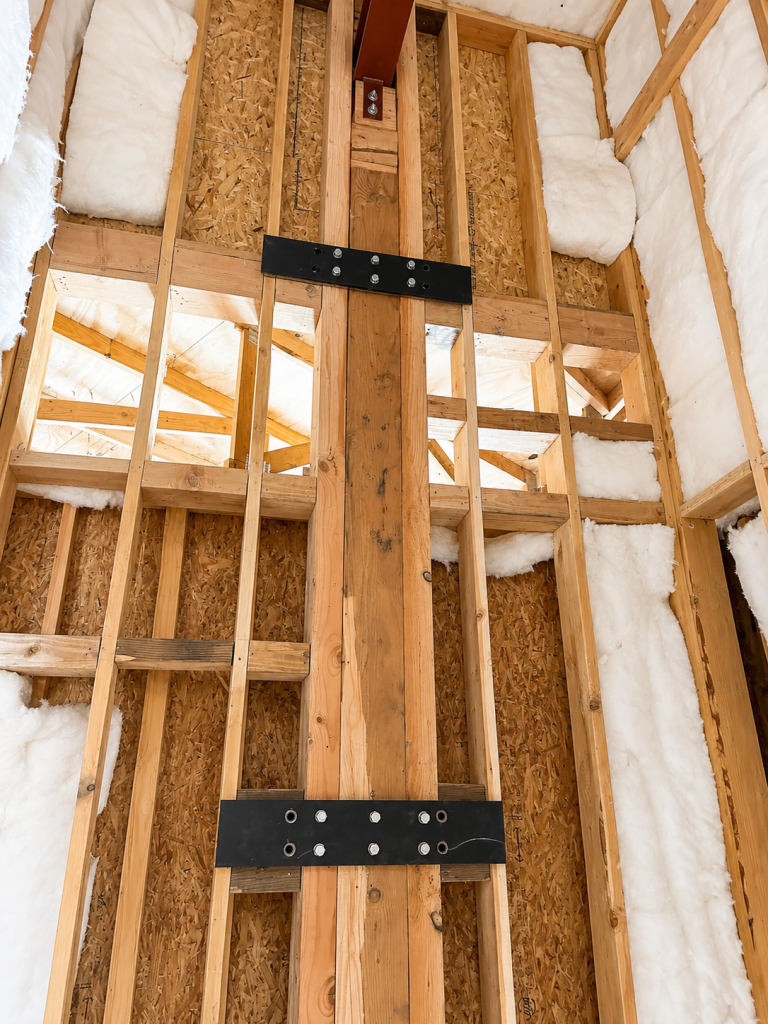

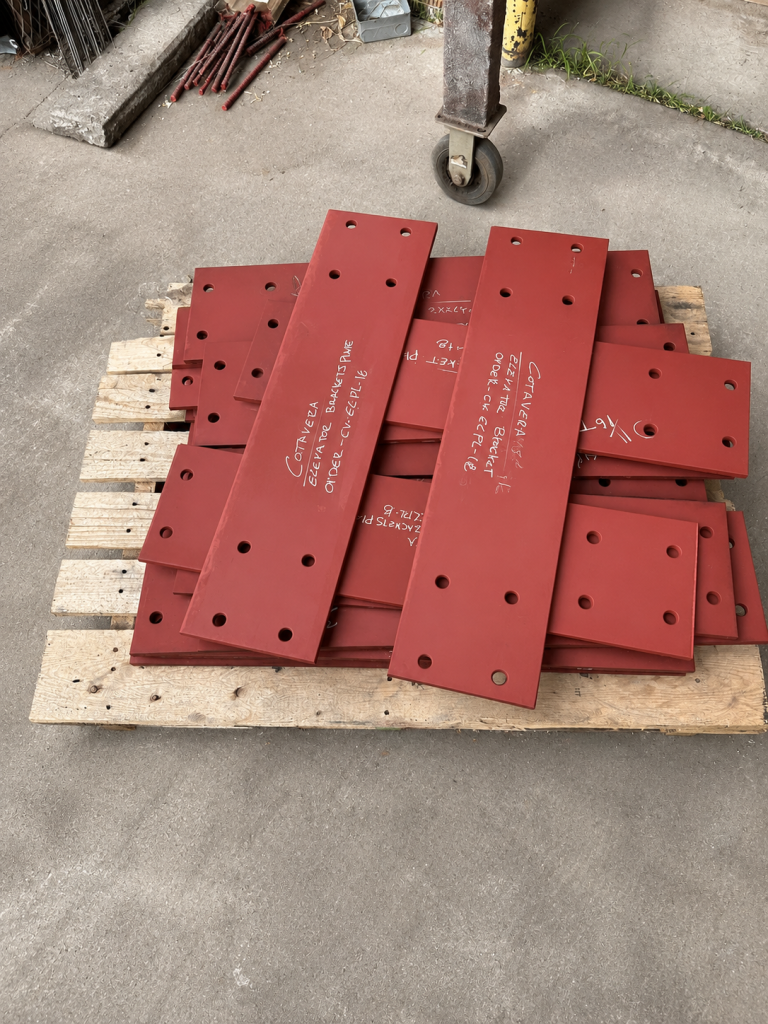

Rail Support Plates

Rail support plates provide welded or bolted attachment locations for elevator guide rail brackets. These steel plates are integrated into the hoistway structure to create a rigid mounting surface capable of supporting operational and seismic loads.

Each support plate is fabricated to project specifications for accurate field installation.

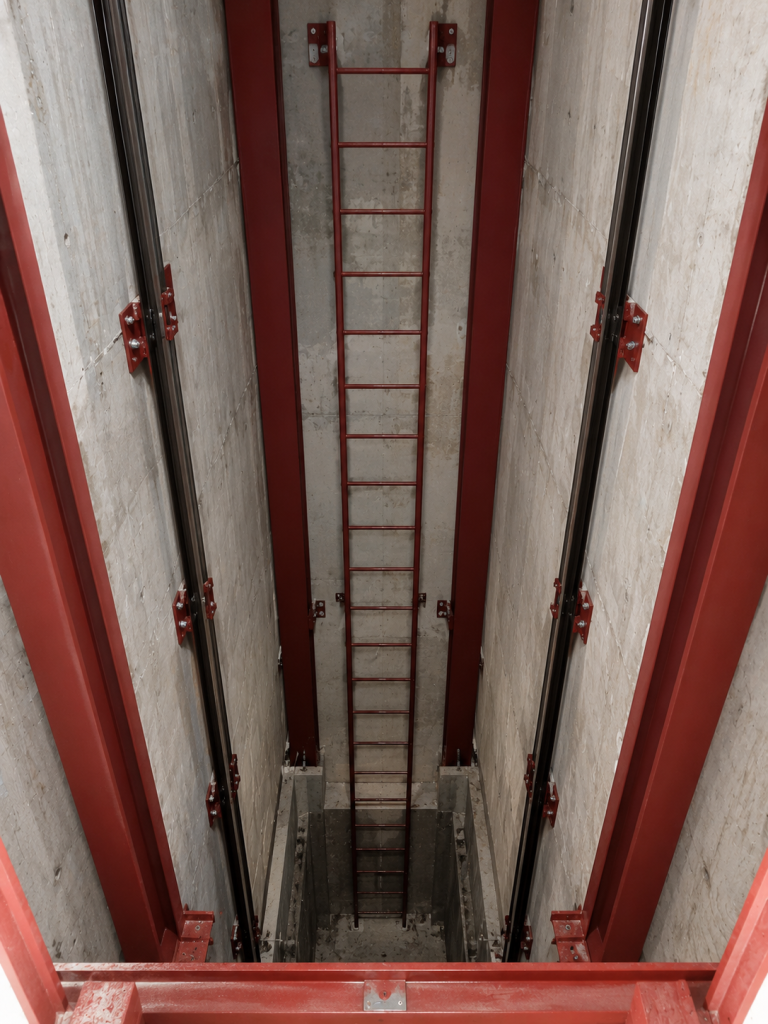

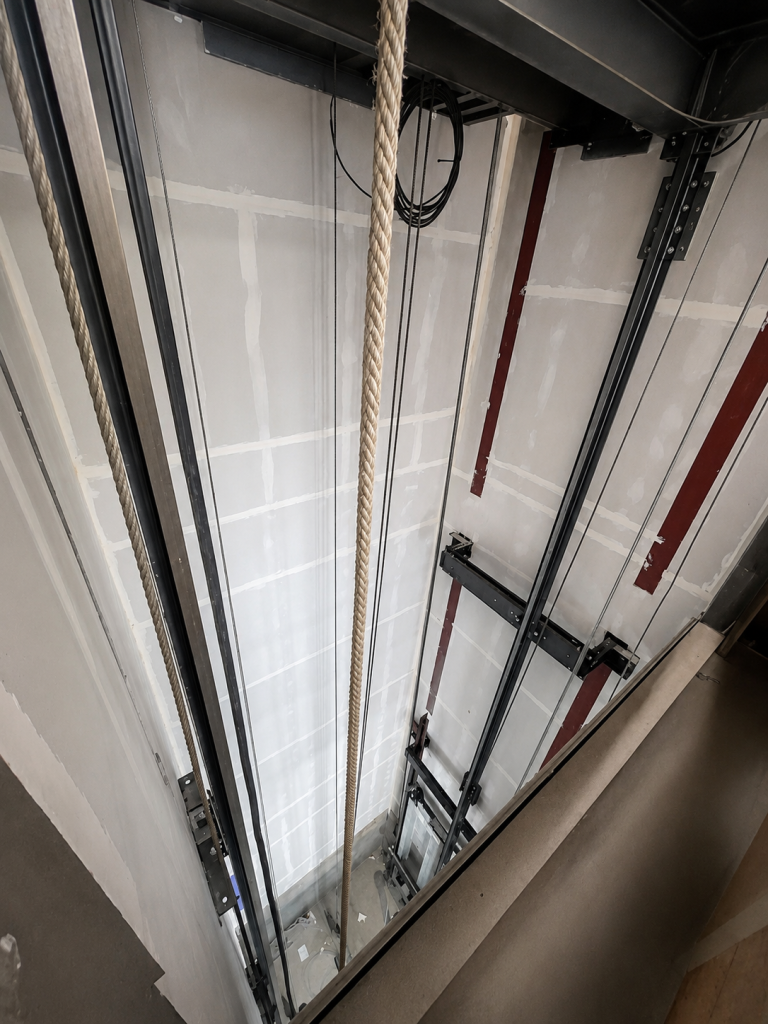

Guide Rail Brackets

Guide rail brackets securely connect elevator guide rails to the building’s structural steel or concrete shaft. Proper bracket placement is critical for maintaining rail alignment and ensuring smooth elevator operation.
Bare Steel fabricates custom structural bracket support systems based on approved engineering drawings and elevator manufacturer requirements.

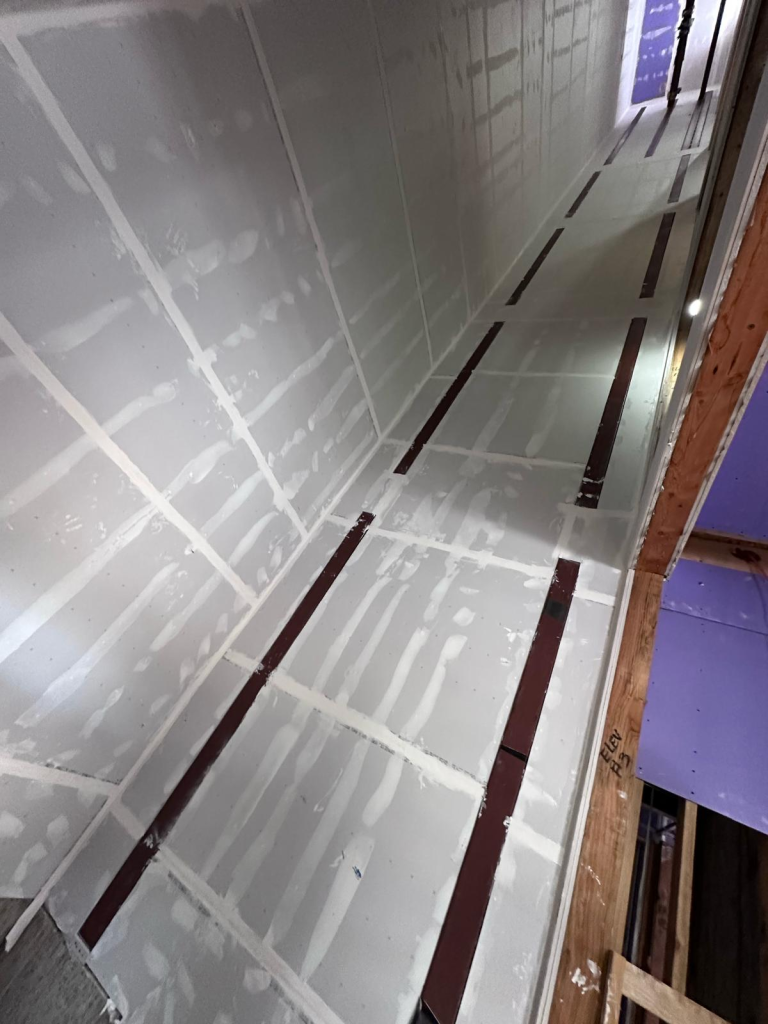

Embedded Plates

Embedded plates are cast into concrete walls and structural elements before the elevator system is installed.

These embedded steel plates provide permanent attachment points for:

1. Guide rail brackets
2. Structural framing
3. Divider beams
4. Miscellaneous elevator supports
Proper placement of embedded plates helps reduce field modifications while improving installation accuracy.

Complete Elevator Structural Steel Solutions

Bare Steel specializes in the fabrication and installation of structural steel components that support elevator systems throughout every phase of construction.

Our elevator structural steel services include:

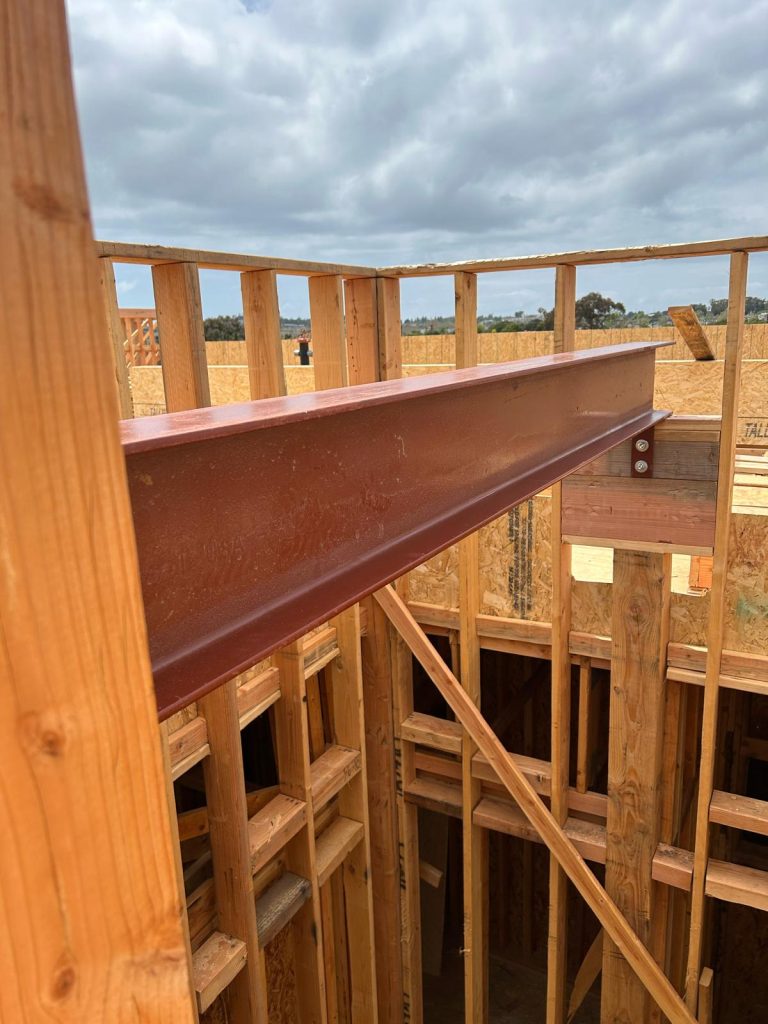

✔ Elevator Hoist Beams

✔ Elevator Guide Rail Support Steel

✔ Guide Rail Brackets

✔ Rail Support Plates

✔ Embedded Steel Plates

✔ Elevator Shaft Columns

✔ Divider Beams

✔ Machine Support Steel

✔ Elevator Pit Steel

✔ Equipment Platforms

✔ Miscellaneous Elevator Structural Steel

Note: Elevator guide rails, machines, and other mechanical elevator equipment are supplied by the elevator manufacturer. Bare Steel fabricates and installs the structural steel support systems that these components attach to.

Partner With Bare Steel on Your Next Elevator Project

From multi-family developments to commercial buildings and industrial facilities, Bare Steel delivers precision-fabricated structural steel for elevator hoistways throughout California.

Whether your project requires a single hoist beam or a complete elevator shaft steel package, our experienced team works closely with engineers, contractors, and elevator installers to ensure every component is fabricated accurately and delivered on schedule.

Need elevator structural steel for your next project? Contact Bare Steel today for a quote.

Get intouch now

Divider Beams

Divider beams separate multiple elevator shafts or support framing between adjacent elevator openings.

These structural members transfer loads throughout the building while providing support for shaft construction and related structural components.

Divider beams are commonly found in commercial buildings, apartment complexes, hospitals, hotels, and high-rise developments.

Machine Support Steel

For elevators requiring dedicated machine rooms or overhead equipment, Bare Steel fabricates custom structural support steel designed to carry elevator machinery and associated loads.

Machine support steel may include:

Wide flange beams
Tube steel framing
Equipment support platforms
Structural connection plates

All fabrication is performed according to project engineering and elevator manufacturer requirements.

Elevator Pit Steel

The elevator pit contains several structural steel components that support installation and long-term operation.

Bare Steel fabricates pit steel including:

Embedded angles
Support channels
Structural framing
Equipment support members
Miscellaneous fabricated steel

Our pit steel is manufactured for accurate fit-up, helping streamline installation in the field.

Equipment Platforms

Many elevator systems require dedicated access platforms for maintenance equipment, controllers, or machinery.

Bare Steel fabricates custom steel equipment platforms designed for:

Safe maintenance access
Equipment support
Service walkways
Mechanical access areas

Platforms are built to project specifications with safety and durability in mind.

Custom Fabrication by BARE STEEL
From engineering support to fabrication and installation, BARE STEEL ensures every component meets the highest standards of strength, precision, and compliance. We tailor hoist beams, guide rail supports, and shaft frameworks to your specific elevator system, whether it’s for commercial, residential, or high-rise applications.
Need help designing your hoistway structure or elevator support system?
Let our team of experts bring your vertical transport system to life—safely and efficiently.
